Challenges and Breakthroughs in the Application of High-frequency Welding in Multi-layer Composite Materials for Drainage Bags

The application of high-frequency welding in multilayer composite materials for drainage bags requires overcoming core challenges such as differences in material properties, thermal damage control, and process stability. Simultaneously, high-quality welding can be achieved through technological breakthroughs in molecular-level uniform heating, intelligent parameter control, and optimized isolation materials. A detailed analysis follows:

I. Core Challenges of High-Frequency Welding in Multilayer Composite Materials for Drainage Bags

1. Fusion Challenges Due to Differences in Material Properties

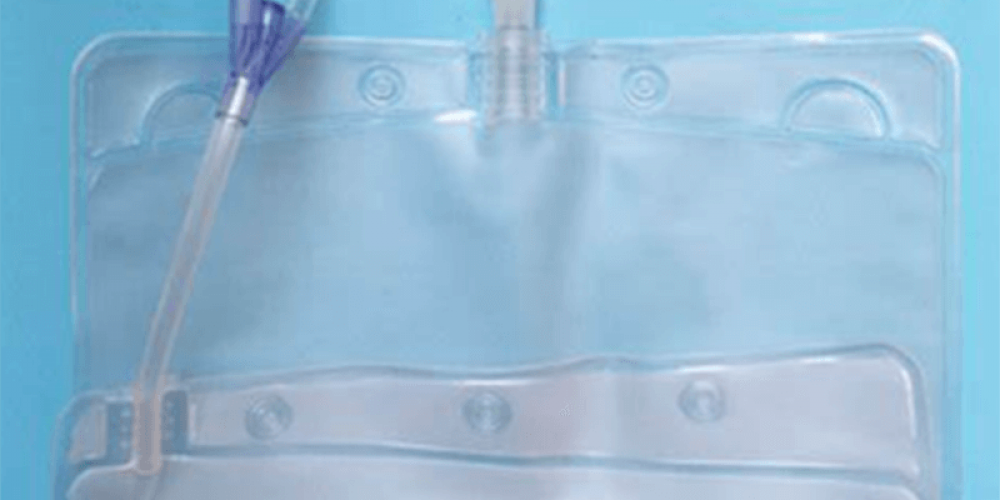

Drainage bags are typically composed of multilayer composite materials such as PVC, TPU, and PE. These materials exhibit significant differences in melting point, coefficient of thermal expansion, and thermal conductivity. High-frequency welding generates heat through molecular friction via electromagnetic fields; however, improper parameter control can easily lead to incomplete melting or localized overheating and carbonization, affecting sealing performance.

2. Risks of Thermal Damage and Stress Concentration

During the welding process, high temperatures can damage the molecular structure of the composite material, leading to a decline in material performance. For example, PVC easily decomposes at high temperatures, producing hydrogen chloride gas, which corrodes equipment and contaminates the product. Simultaneously, stress concentration caused by welding can induce microcracks, reducing the compressive strength and fatigue resistance of the drainage bag.

3. Process Stability and Consistency Control

The production of drainage bags must meet the high standards of the medical industry. However, the parameters of high-frequency welding (such as power, pressure, and time) are affected by factors such as material thickness and ambient temperature, requiring dynamic and precise control; otherwise, defects such as incomplete welding and over-welding are prone to occur.

II. Breakthrough Solutions for High-Frequency Welding Technology

1. Molecular-Level Uniform Heating Technology

High-frequency welding uses a 27.12MHz or 40.68MHz high-frequency electric field to polarize the molecules within the composite material through frictional heating, achieving uniform fusion from the inside out. Simultaneously, precise temperature control prevents material carbonization or degradation, ensuring the safety of the medication.

2. Intelligent Parameter Control System

High-frequency welding equipment integrates real-time monitoring and feedback adjustment functions for parameters such as pressure, temperature, and time. For example, through pressure sensors and infrared thermometers, the system can automatically adjust welding pressure and power to ensure consistent welding quality across different batches of materials.

3. Optimized Isolation Materials and Mold Design

To prevent the bottom heating plate from absorbing heat from the workpiece, high-frequency welding uses an isolation material as a heat buffer layer. Its thickness reduces heat loss, allowing for the creation of larger weld areas with the same power. Simultaneously, mold design must consider material flowability; for example, by incorporating flow channels at the edges of the drainage bag to guide the molten material to fill evenly, preventing voids or overflow.

4. Composite Material Surface Pretreatment Technology

To address the issues of easy oxidation and contamination on composite material surfaces, plasma cleaning or corona treatment is required before high-frequency welding to remove oil and oxides, increase surface energy, and enhance weld strength.
